Key Features & Specifications

Dual redundant power inputs for reliable and uninterrupted operation

Multiple connectivity options including GPS, CAN, I²C, Serial, USB, and SBC connectors

Servo outputs for flexible control and simplified setup

Seamless integration with the Cube Orange Plus for easy installation and compatibility

Compact, lightweight, and robust design optimized for multirotor, fixed-wing, VTOL, and rover applications

Dimensions (L × W × H): 80 mm × 50 mm ×  24 mm

Weight: 54 g

Power Input: 5 V

Power Ports: 2 × Power inputs

PWM Outputs: 8 × Motor outputs (M1–M8)

AUX / Servo Outputs: 6 × Servo outputs (shared AUX rail, external power capable)

RC Input: SBus In / Out (2.54 mm standard RC input/output)

UART / Serial Ports: 2 × UART (SERIAL1, SERIAL2)

I2C Ports: 1 × I2C

CAN Bus: 1 × CAN1

GPS Ports: 2 × GPS (GPS1, GPS2)

Companion Computer Interface: 1 × SBC Port

USB: 1 (For firmware flashing & configuration)

Buzzer Port: 1

Operating Temperature: –10 °C to +80 °C

Designed For

Multirotor drones

Fixed-wing aircraft

VTOL systems

Rovers & ground vehicles

Package Includes

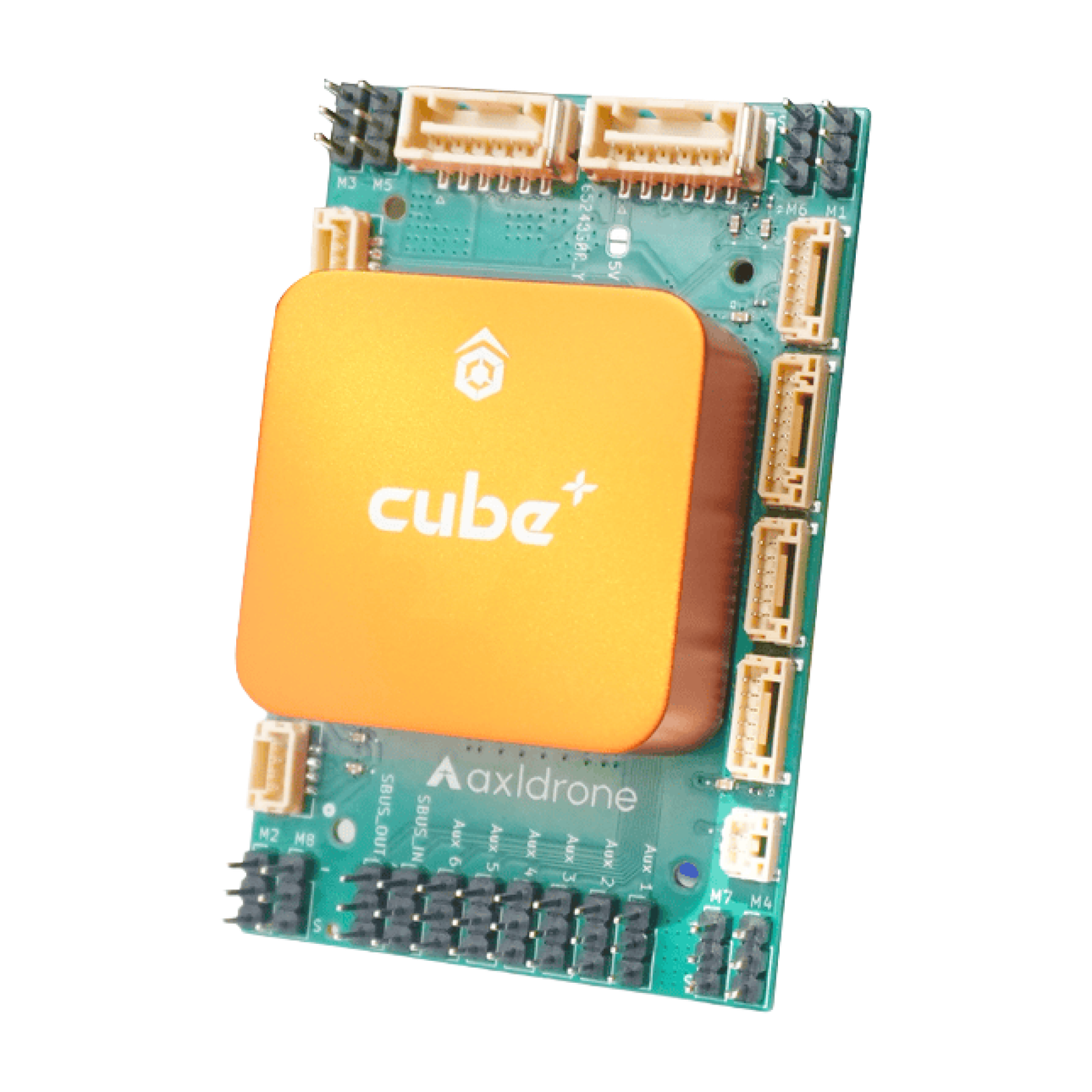

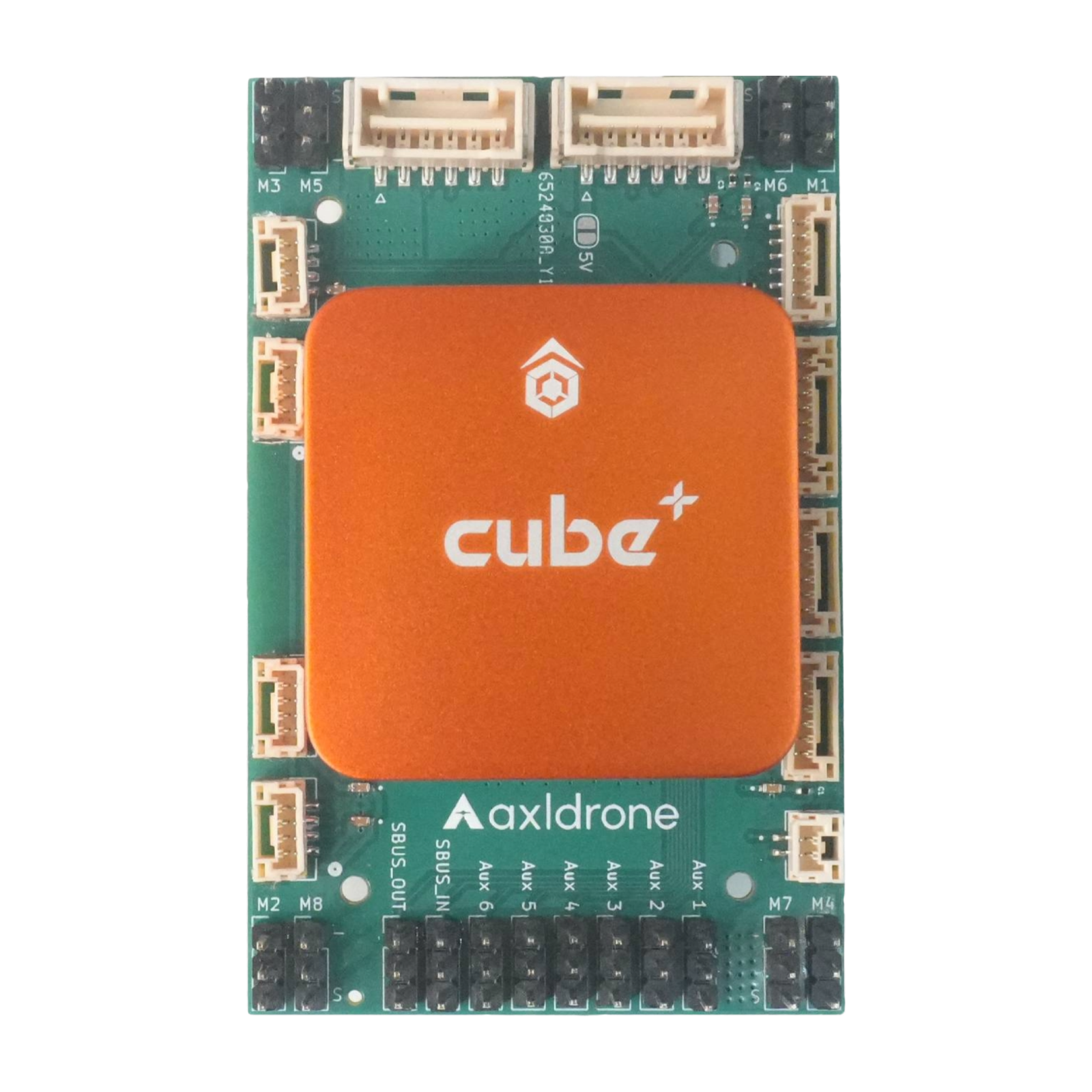

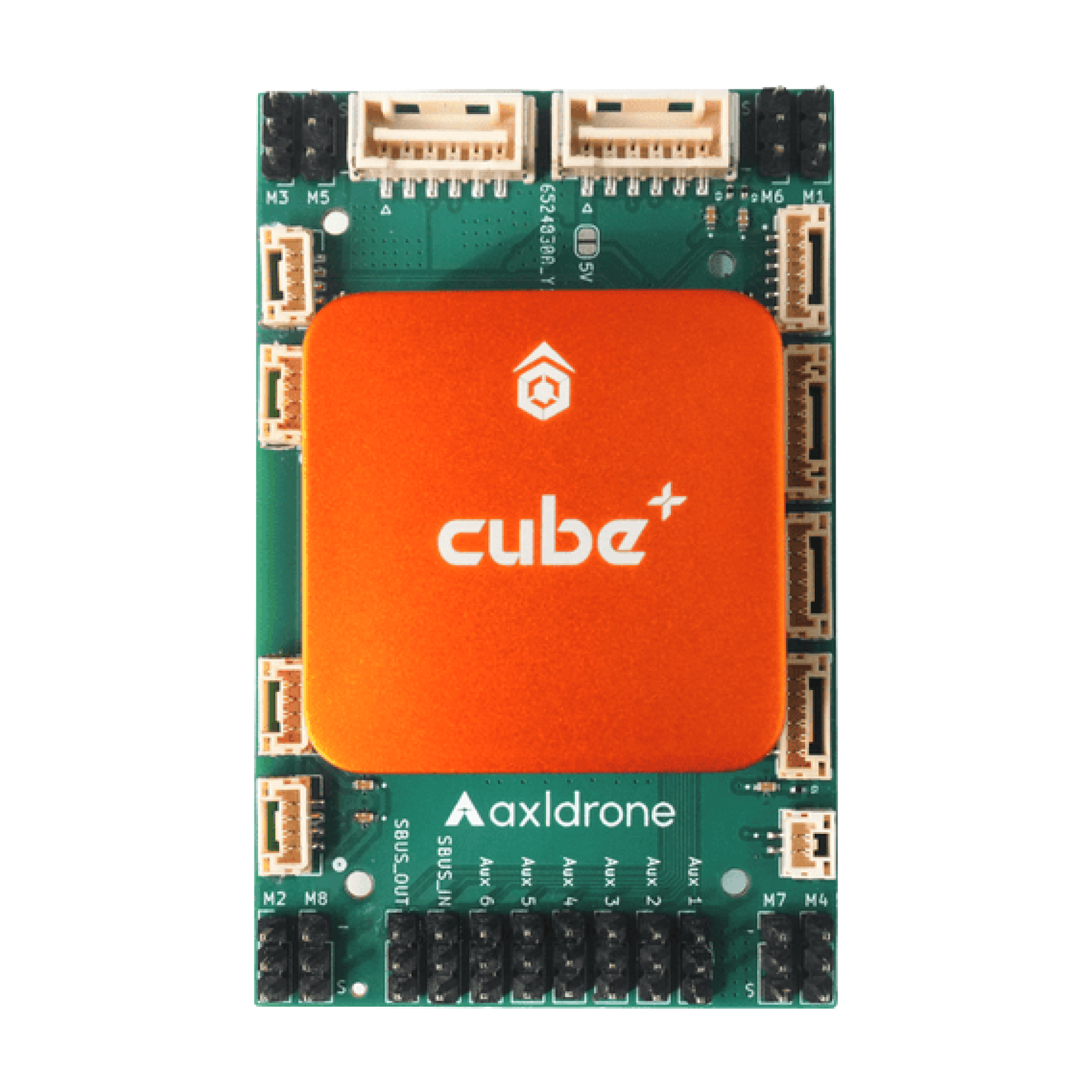

1× axl Carrier Board

1x Cube Orange+
