HappyModel 2.4G ELRS EP1 TCXO Receiver

1,942.50 GST

The new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable

Out of stock

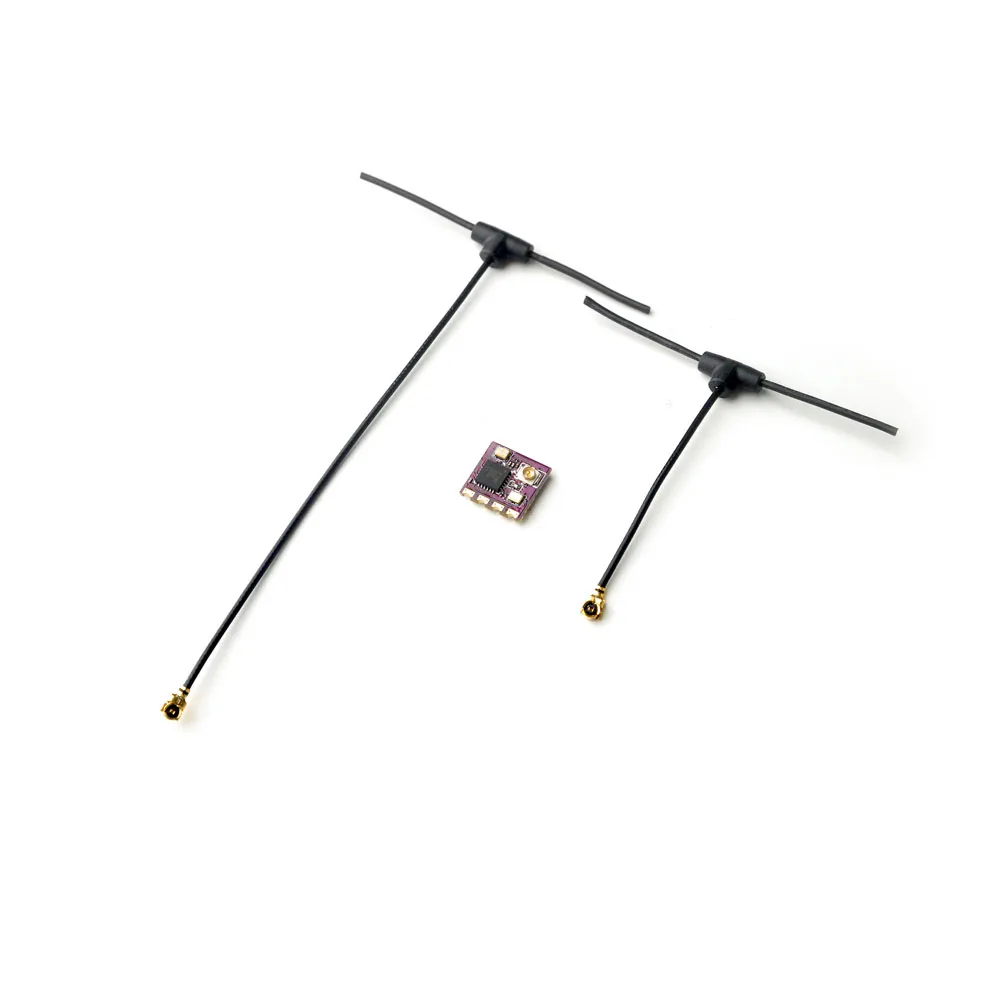

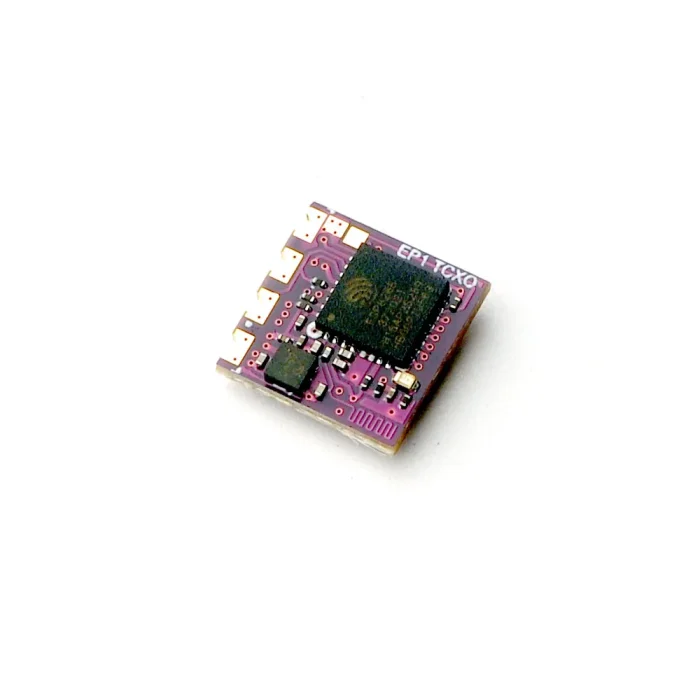

EP1 TCXO Receiver
Type: ISM2.4GHz
SX1280(SX1281)IMLTRT RF Module
Omni directional antenna
Frequency Range: 2400 MHz to 2500 MHz
Receive refresh rate: 25HZ~500Hz
Working voltage: 5v
Weight: 0.41 gram(without antenna)
Dimension: 10mm*10mm*6mm
Peak gain: 2.23dB
Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version
Built-in a TCXO (temperature compensated crystal oscillator)

Additional information

Weight 0.1 kg
