Description

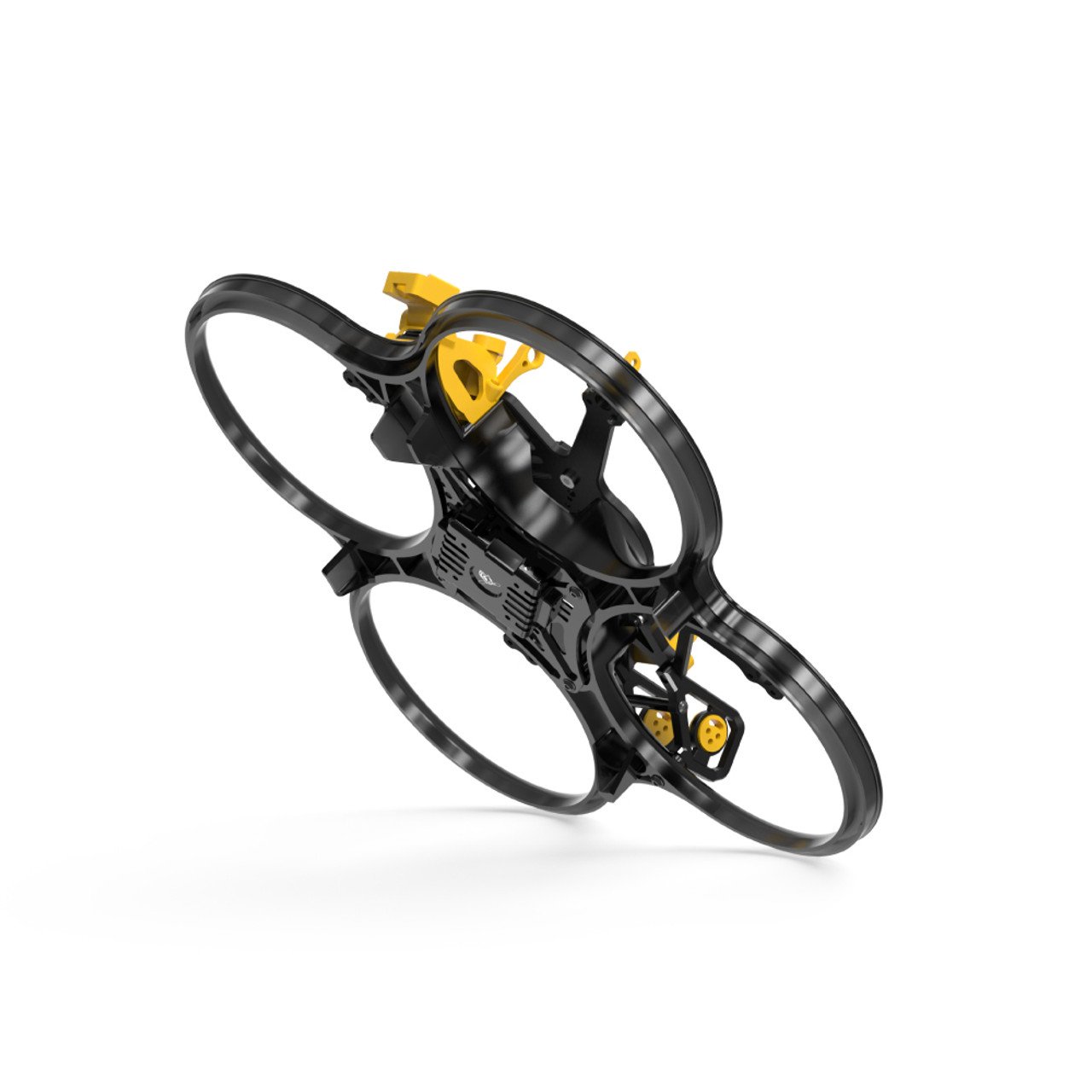

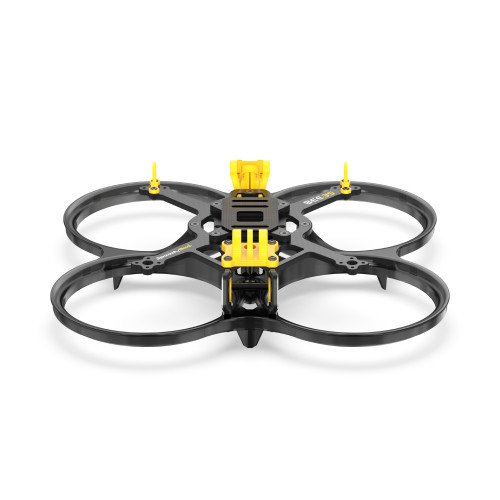

SpeedyBee Bee35 Frame

SpeedyBee Bee35 Frame

SpeedyBee Bee35 Frame

Aerospace-grade Aluminum Front Plate
The aviation-grade aluminum headpiece provides excellent protection for the lens, and it is embedded with custom silicone damping material, resulting in effective anti-vibration performance for the lens. The GyroFlow effect is enhanced for better stability.
Open-source 3D printing schematics are available, enabling you to print them with different thicknesses to accommodate various lens installations.

SpeedyBee Bee35 Frame

100% efficient heat dissipation
We have found that the O3 video transmitter shuts down due to high CPU temperatures during prolonged high-temperature operation. To address this issue, we have specially designed a 7075-T aerospace-grade aluminum component for the O3 video transmitter, doubling its heat dissipation efficiency! Additionally, it features 20×20 mounting screw holes, making it compatible with Link, TX800, and other 20-hole video transmitters.
Note: The test data is conducted at an ambient temperature of 26 degrees Celsius. The actual performance may vary depending on the temperature of the usage environment.

SpeedyBee Bee35 Frame

Custom-made aerospace-grade aluminum components.
Specially designed to solve the TF card insertion issue of O3 without disassembly. Easily insert the card without any hassle. It also features a dedicated frequency position for O3 and Link video transmitters, making it super convenient for Type-C connection!
Note: BEE35 comes with a carbon
fiber bottom plate. BEE35 PRO comes
with an aluminum alloy heat sink bottom plate.

SpeedyBee Bee35 Frame

H-FOV135°
135° wide-angle without dark corners.

SpeedyBee Bee35 Frame

Two battery installation methods.
Super convenient battery strap design allows for horizontal or vertical battery mounting.

SpeedyBee Bee35 Frame

Super durable injection-molded ring.

SpeedyBee Bee35 Frame

Compatible with Meteor LED
Offers seven preset basic effects and allows for wireless customization of your personal lighting styles through the app.

SpeedyBee Bee35 Frame

Compatible with flight towers.
Supports installation of various flight towers and AIO (All-In-One) boards in sizes of 20×20, 25.5×25.5 (45° 90°), and 30.5×30.5.
20-hole MINI flight tower —— Recommended (Perfect fit)
25.5-hole AIO flight controller —— Recommended (Perfect fit)
30.5-hole standard flight tower —— Not recommended
(Installation is compact and requires some hands-on skills)

SpeedyBee Bee35 Frame

Compatible with video transmitters.
The standard version supports various HD and analog video transmitter installations in 2020 | 25.525.5 (45° 90°) formats.
For installing LINK or O3 video transmitters, it is recommended to use an all-in-one (aio) flight controller. If you plan to install a flight stack, it is advisable to use the pro version.
Note: BEE35 comes with a carbon fiber bottom plate. BEE35 PRO comes with an aluminum alloy heat sink bottom plate.

SpeedyBee Bee35 Frame

Multi-function antenna mount.
Type-C adapter cable directly plugs into the flight controller without disassembling the aircraft.

SpeedyBee Bee35 Frame

Quick Release Solution
Only 6 screws are to be removed for freeing drone body and propeller guard.

SpeedyBee Bee35 Frame

Detachable damping gimbal, Convenient for mounting different cameras with damping.

SpeedyBee Bee35 Frame

SpeedyBee Bee35 Frame

SpeedyBee Bee35 Frame

SpeedyBee Bee35 Frame

Specifications
Product NameSpeedyBee Bee35 Frame
Wheelbase153mm
Top Plate Thickness3.5mm
Bottom Plate Thickness2mm
Camera Mounting Distance19/20mm
ESC/Motor Mounting Height24mm
Flight Stack Mounting Holes20*20/25.5*25.5/30.5*30.5mm
Video Transmitter Mounting Holes20*20/25.5*25.5
Propeller Size90mm
Motor Mounting Holes12*12mm
Weight138g
CNC Heat Sink15g
Camera Gimbal28g
Recommended Motor1806/2004/2006
Recommended KV4S/2500-3500KV,6S/1800-2300KV
Recommended Battery900-1500mAh 4S/6S
