1s Whoop replacement AIO – 5Amp with ELRS & VTX

6,825.00 GST

Out of stock

SKU: AIO5AHM Category:

Description

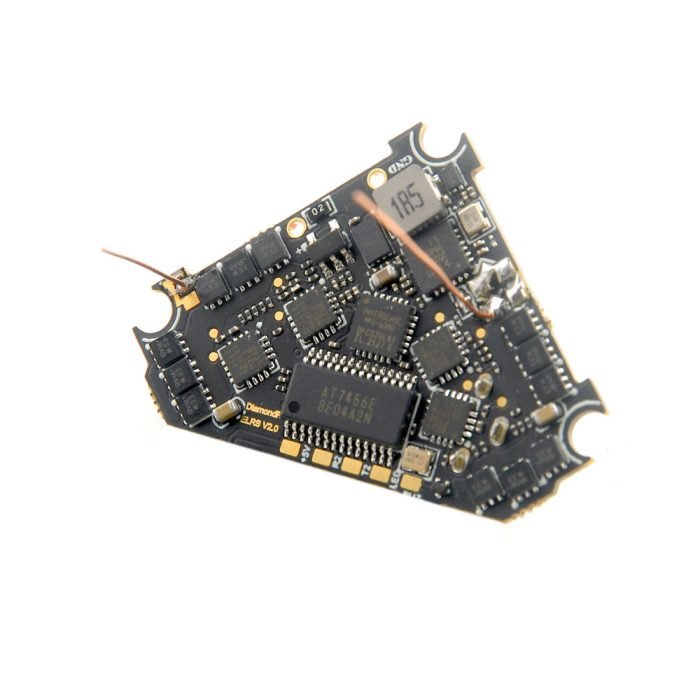

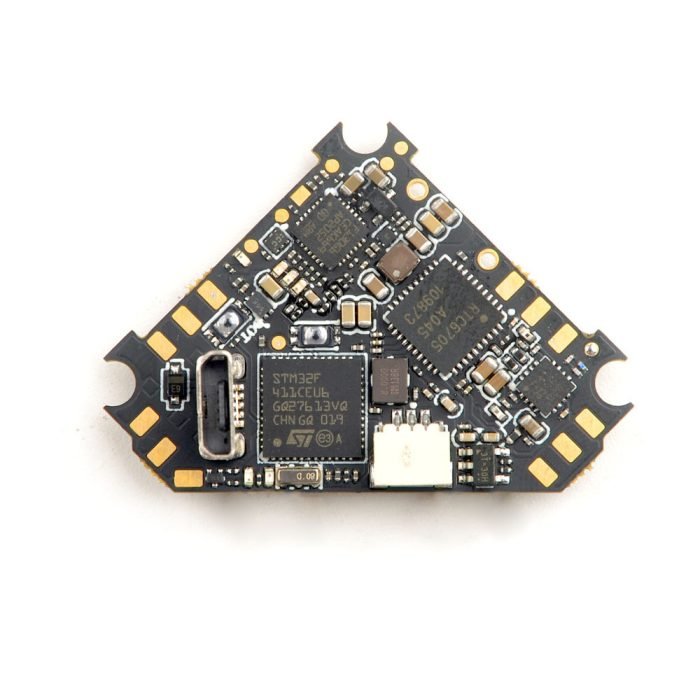

The Happymodel Diamond F4 AIO 5-IN-1 Flight Controller has a built-in VTX, ESC, OSD, and receiver – all on one triangle-shaped whoop board! The 3 corners fit 25.5mm whoop mounting spacing. This is the AIO board included on the ultra-light Happymodel Moblite6/7 whoops and is inspired by Happymodel’s Official Pilot – Angry Don FPV!

Features

  • Diamond Mounting Pattern – 22.2×22.2×32.7mm
  • Built-in 5A Blheli_S 4in1 ESC, Dshot600 ready
  • Built-in Betaflight OSD (SPI Control)
  • Built-in 25-200mW 5.8GHz VTX
  • Built-in SPI ELRS Receiver
  • Built-in 5V/1A BEC

Specifications

  • DiamondF4 ELRS FC Firmware target: CrazybeeF4SX1280
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • OSD: Built-in Betaflight  (SPI Control)
  • Sensor: MPU-6000 (SPI connection)
  • BEC: Built-in 5V 1A

SPI ELRS V2.0 RECIEVER

  • Packet Rate option: 50Hz/150Hz/250Hz/500Hz
  • Compatibility: ExpressLRS V2.0 TX Module
  • Antenna: Enameled copper wire antenna
  • ExpressLRS Firmware version: V2.0
  • Receiver protocol: SPI ExpressLRS
  • Telemetry output Power: <12dBm
  • RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Factory firmware: O_H_5_REV16_8.HEX
  • Support BLHeliSuite programmable
  • MCU upgraded to EFM8BB21
  • Default protocol: DSHOT600

ONBOARD 5.8 GHZ VTX

  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Current (5v): <650ma (400mw)
  • Firmware version: OPENVTX
  • Power supply: DC 5V
  • RCE Mode support
  • PIT Mode support
  • Smart audio v2.1
  • Channels:48ch

IMPORTANT NOTES

  • SPI ELRS receiver. Cannot flash ExpressLRS firmware separately.

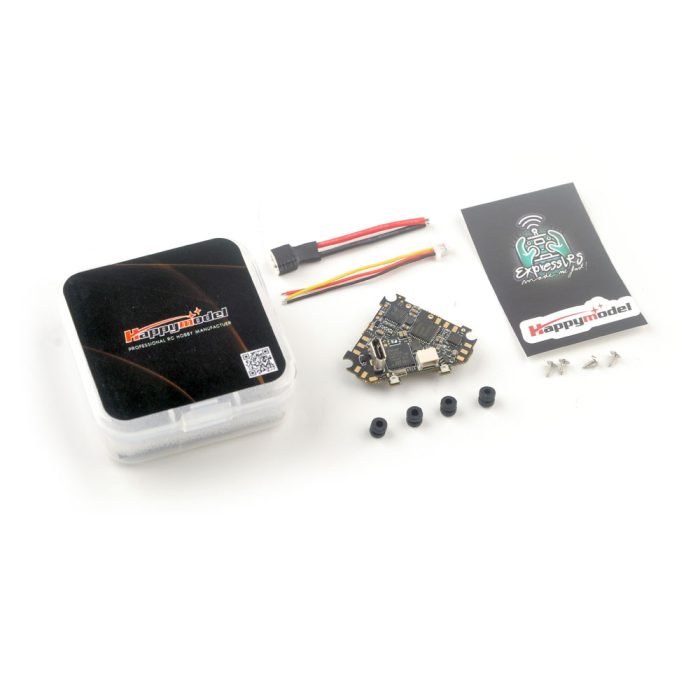

Includes

  • 1x Happymodel Diamond F4 FR AIO 5-in-1 Flight Controller – SPI ELRS
  • 2x Connecting Wire
  • 4x Damping Balls
  • 4x Screws

Additional information

Weight .05 kg
