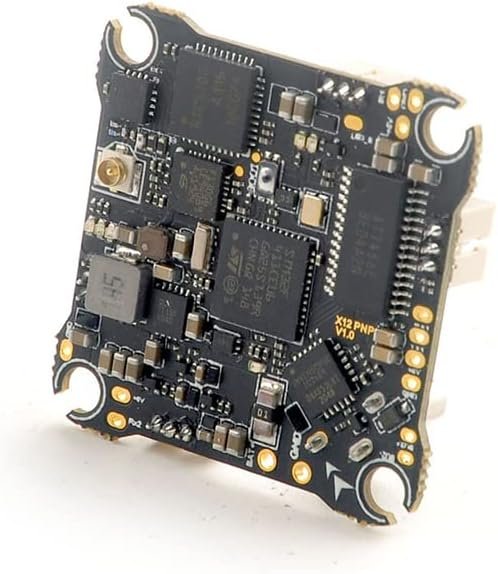

X12 AIO 5 in 1 Flight Controller built-in 12A ESC and OPENVTX Support 1-2S
₹7,400.00 GST
Out of stock
Description
Specifications:
Brand Name: Happymodel
Item Name: X12 AIO 5-IN-1 Flight controller built-in 12A ESC and OPENVTX
Betaflight firmware target:
ELRS Version: CRAZYBEEF4SX1280
FRSKY Version:CRAZYBEEF4FR
FLYSKY Version:CRAZYBEEF4FS
PNP Version:CRAZYBEEF4DX
LITE Version:CRAZYBEEF4SX1280
VTX antenna: U.FL
Weight: 5.1g
Support 1-2S Lipo/LIHV battery
Size: 30mm*30mm*8mm
| Flight controller | X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 X12 Frsky V2.1 flight controller built-in FRSKY 2.4G receiver Target: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in Flysky AFHDS-2A 2.4G receiver Target:CRAZYBEEF4FS X12 PNP V1.0 flight controller without onboard receiver Target CRAZYBEEF4DX X12 LITE V1.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280 MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM20689 or BMI270 or ICM42688P(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16, Flysky AFHDS-2A Built-in voltage meter sensor , voltage meter scale 110Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware |
| Onboard Frsky SPI D8/D16 receiver Version | SPI BUS receiver CC2500 RF Compatible Non EU transmitter D8 model Channels: 8ch No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support Support Frsky D8/ D16 , Redpine , SFHSS |
| Onboard Flysky SPI AFHDS-2A receiver Version | SPI BUS receiver Protocol: AFHDS-2A Channels: 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| Onboard 5.8g OPENVTX | Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL |
